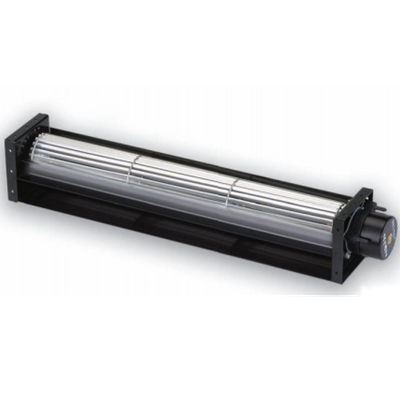

JAD-040R Series
我要購買
JAD-040R Series

    144mm (5.7in) to 416mm (16.4in) lengths. DC Brushless type motor, temperature resistant aluminum alloy, ball or sleeve bearings. Maximum Pressure: 2.0mmAq (0.078inH2O) to 2.9mmAq (0.114inH2O), Maximum Air Flow: 24CFM (0.7m3/min) to 106CFM (3.0m3/min). CE listed.

  • Donwload1：
  • Certification ：
  MODEL NO. RATED VOLTAGE FREQUENCY RATED CURRENT INPUT POWER SPEED MAX. AIR PRESSURE MAX. AIR FLOW NOISE Static Pressure Capacity Quantity
    (V) (Hz) (A) (W) (RPM) (CFM) (m3/h) (dBA) (Pa) (μF) Order Quantity
JA04009R12S/JAD04009R24S 12V/24V   0.20/0.15   3000 24   33 2.9
JAD04015R12S/JAD04015R24S 12V/24V   0.25/0.20   2600 35   31 2.6
JAD04019R12S/JAD04019R24S 12V/24V   12V/24V   2500 74   33 2.0
JAD04029R12S/JAD04029R24S 12V/24V   0.40/0.20   2300 74   33 2.0
JAD04035R12S/JAD04035R24S 12V/24V   0.60/0.40   2600 106   42 2.0
