JAD-030R Series
我要購買

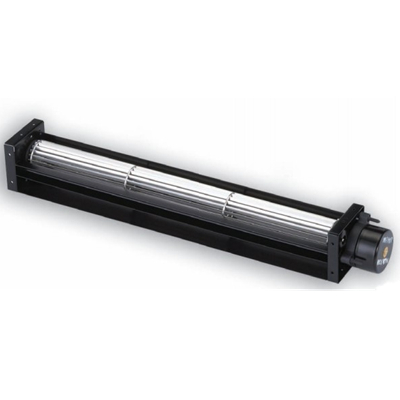

JAD-030R Series

    134mm (5.3in) to 345mm (13.6in) lengths. DC Brushless type motor, temperature resistant aluminum alloy, ball or sleeve bearings. Maximum Pressure: 1.5mmAq (0.059inH2O) to 1.9mmAq (0.074inH2O), Maximum Air Flow: 22CFM (0.6m3/min) to 53CFM (1.5m3/min). CE, UL listed.

  • Donwload1：
  • Certification ：
  MODEL NO. RATED VOLTAGE FREQUENCY RATED CURRENT INPUT POWER SPEED MAX. AIR PRESSURE MAX. AIR FLOW NOISE Static Pressure Capacity Quantity
    (V) (Hz) (A) (W) (RPM) (CFM) (m3/h) (dBA) (Pa) (μF) Order Quantity
JAD03009R12/JAD03009R24 12V/24V   0.15/0.18   3200 22   29 1.9
JAD03015R12/JAD03015R24 12V/24V   0.16/0.15   3100 28   30 1.7
JAD03019R12/JAD03019R24 12V/24V   0.20/0.16   2900 35   31 1.7
JAD03029R12/JAD03029R24 12V/24V   0.22/0.20   2600 46   33 1.5
JAD03029R12S/JAD03029R24S 12V/24V   0.28/0.15   2800 53   52 1.6
