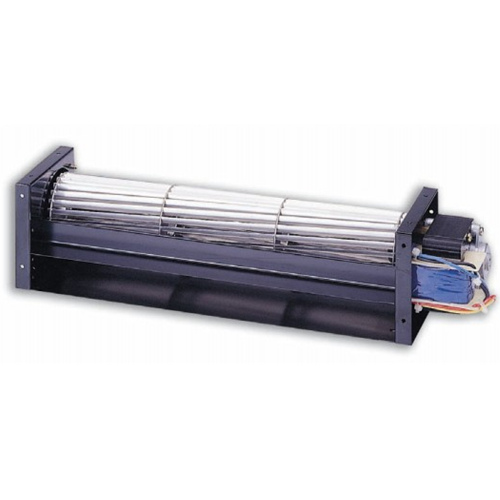

JA-060R Series

    57mm (10.1in) to 507mm (19.9in) lengths. AC shaded type motor, temperature resistant aluminum alloy, ball or sleeve bearings. Maximum Pressure: 2.2mmAq (0.086inH2O) to 7.3mmAq (0.287inH2O), Maximum Air Flow: 63CFM (1.8m3/min) to 180CFM (5.1m3/min) CE, UL listed.

  • Donwload1:
  • Certification :
  MODEL NO. RATED VOLTAGE FREQUENCY RATED CURRENT INPUT POWER SPEED MAX. AIR PRESSURE MAX. AIR FLOW NOISE Static Pressure Capacity Quantity
    (V) (Hz) (A) (W) (RPM) (CFM) (m3/h) (dBA) (Pa) (μF) Order Quantity
JA06018R12L 120V 60 0.33 23 1700 63   35 3.8
JA06018R23L 230V 50 0.17 23 2000 88   39 3.7
JA06018R12H 120V 50 0.55 37 2500 106   47 7.3
JA06018R23H 230V 50 0.27 34 2500 106   47 5.4
JA06024R12L 120V 60 0.42 31 1900 102   41 4.9
JA06024R23L 230V 50 0.23 31 2000 118   42 3.9
JA06024R12H 120V 60 0.60 42 2000 106   42 5.1
JA06024R23H 230V 50 0.27 35 2200 133   44 4.6
JA06030R12 120V 60 0.63 42 1900 114   42 4.7
JA06030R23 230V 50 0.28 36 2200 154   44 4.6
JA06036R12 120V 60 0.64 43 1700 133   41 3.0
JA06036R23 230V 50 0.30 38 2000 167   43 4.7
JA06042R12 120V 60 0.64 44 1600 139   41 2.2
JA06042R23 230V 50 0.31 40 1800 180   43 3.3
