JA-050R Series
我要購買
JA-050R Series

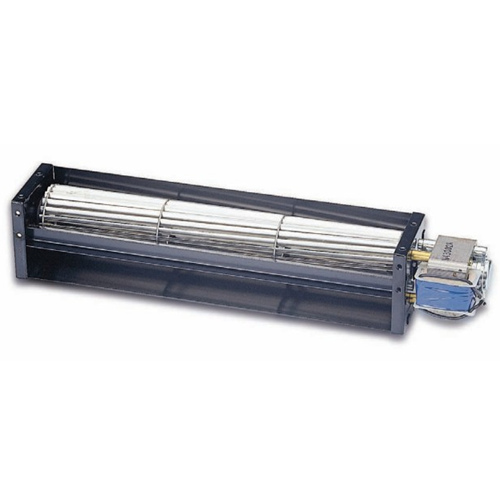

    162mm (6.4in) to 437mm (17.2in) lengths. AC shaded type motor, temperature resistant aluminum alloy, ball or sleeve bearings. Maximum Pressure: 2.7mmAq (0.106inH2O) to 4.3mmAq (0.169inH2O), Maximum Air Flow: 24CFM (0.7m3/min) to 116CFM (3.3m3/min) CE, UL, TUV listed.
  • Donwload1：
  • Certification ：
  MODEL NO. RATED VOLTAGE FREQUENCY RATED CURRENT INPUT POWER SPEED MAX. AIR PRESSURE MAX. AIR FLOW NOISE Static Pressure Capacity Quantity
    (V) (Hz) (A) (W) (RPM) (CFM) (m3/h) (dBA) (Pa) (μF) Order Quantity
JA05009R12 120V 50/60 0.15/0.13   2500/2600 24/28   36/37 2.7/3.6
JA05009R23 230V 50/60 0.09/0.07   2500/2600 24/28   36/37 2.7/3.6
JA05019R12 120V 50/60 0.23/0.21   2200/1800 67/60   36/33 3.1/3.7
JA05019R23 230V 50/60 0.10/0.09   2100/1700 63/56   35/32 3.1/3.6
JA05029R12 120V 50/60 0.35/0.33   2300/2000 116/88   41/37 3.7/4.3
JA05029R23 230V 50/60 0.15/0.14   2300/1800 116/81   41/35 3.7/4.1
JA05035R12 120V 50/60 0.35/0.33   2300/2000 110/103   41/36 3.7/4.3
JA05035R23 230V 50/60 0.15/0.14   2200/1600 110/92   40/34 3.5/4.0
