JA-040R series
我要購買

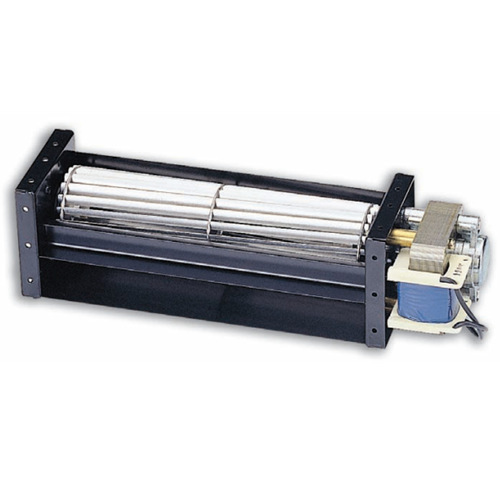

JA-040R series

    160mm (6.3in) to 366mm (14.4in) lengths. AC shaded type motor, temperature resistant aluminum alloy, ball or sleeve bearings.Maximum Pressure: 0.7mmAq (0.028inH2O) to 2.6mmAq (0.10inH2O), Maximum Air Flow: 21CFM (0.6m3/min) to 70CFM (2.0m3/min) CE, UL, TUV listed.

  • Donwload1：
  • Certification ：
  MODEL NO. RATED VOLTAGE FREQUENCY RATED CURRENT INPUT POWER SPEED MAX. AIR PRESSURE MAX. AIR FLOW NOISE Static Pressure Capacity Quantity
    (V) (Hz) (A) (W) (RPM) (CFM) (m3/h) (dBA) (Pa) (μF) Order Quantity
JA04009R12 120V 50/60 0.14/0.12 10/9 2700/3000 21/24   29/33 1.7/2.3
JA04009R23 230V 50/60 0.09/0.07 11/9 2700/3000 21/24   29/33 1.7/2.3
JA04015R23 230v 50/60 0.09/0.07 11/9 2600/2800 35/39   30/34 1.9/2.4
JA04015R12 120V 50/60 0.15/0.13   2600/2800 35/39   30/34 1.9/2.4
JA04019R12 120V 50/60 0.15/0.13   2500/2400 49/46   33/31 2.0/2.6
JA04019R23 230V 50/60 0.15/0.13 10/9 2500/2400 49/46   33/31 2.0/2.6
JA04029R12 120V 50/60 0.23/0.21   2400/2200 74/70   37/35 2.1/2.6
JA04029R23 230V 50/60 0.10/0.09   2400/2200 74/70   37/35 2.1/2.6
